Type F RCDs is a new RCD type recently introduced in IEC 62423 and in IEC60755. In addition to the detection characteristics of type A RCDs, type F RCDs are specially designed for circuit protection where single phase variable speed drives could be used.. Terminology To select and apply residual current devices correctly, requires a basic understanding of the associated Jargon. The term RCD in its self is often incorrectly used – Definitions for some common terms are listed below, refer to Part 2 of BS7671 for a full list associated with the Regulations.
Which type of residual current device (RCD) you should use for
Wiring Diagram For A 4 Pole Rcd Wiring Diagram
RCD Type B, RCCB, 63 Amp, 3 Phase (Installations Electric
In what situations do you install a type A RCD?
MK RCD 80 Amp 100mA Double Pole Time Delay 80A Sentry 6980S NEW
TypeB RCD 3P+N (Chint NL21063463/30) Shop OpenEnergyMonitor
ABB Residual current devices RCDs Factomart Singapore
Inevitable in almost all electrical switchboards Residual current
RCDs explained Redlandel
آر سی دی چیست؟
Need RCD Testing Call Jim’s Test and Tag NZ Today
Residual Current Circuit Breaker RCD Type B 40A/63A 30mA ANS EVSE
100 Amp 100mA Time Delayed RCD 2 Pole Wylex
Residual Current Circuit Breaker RCD Type B 40A/63A 30mA ANS EVSE

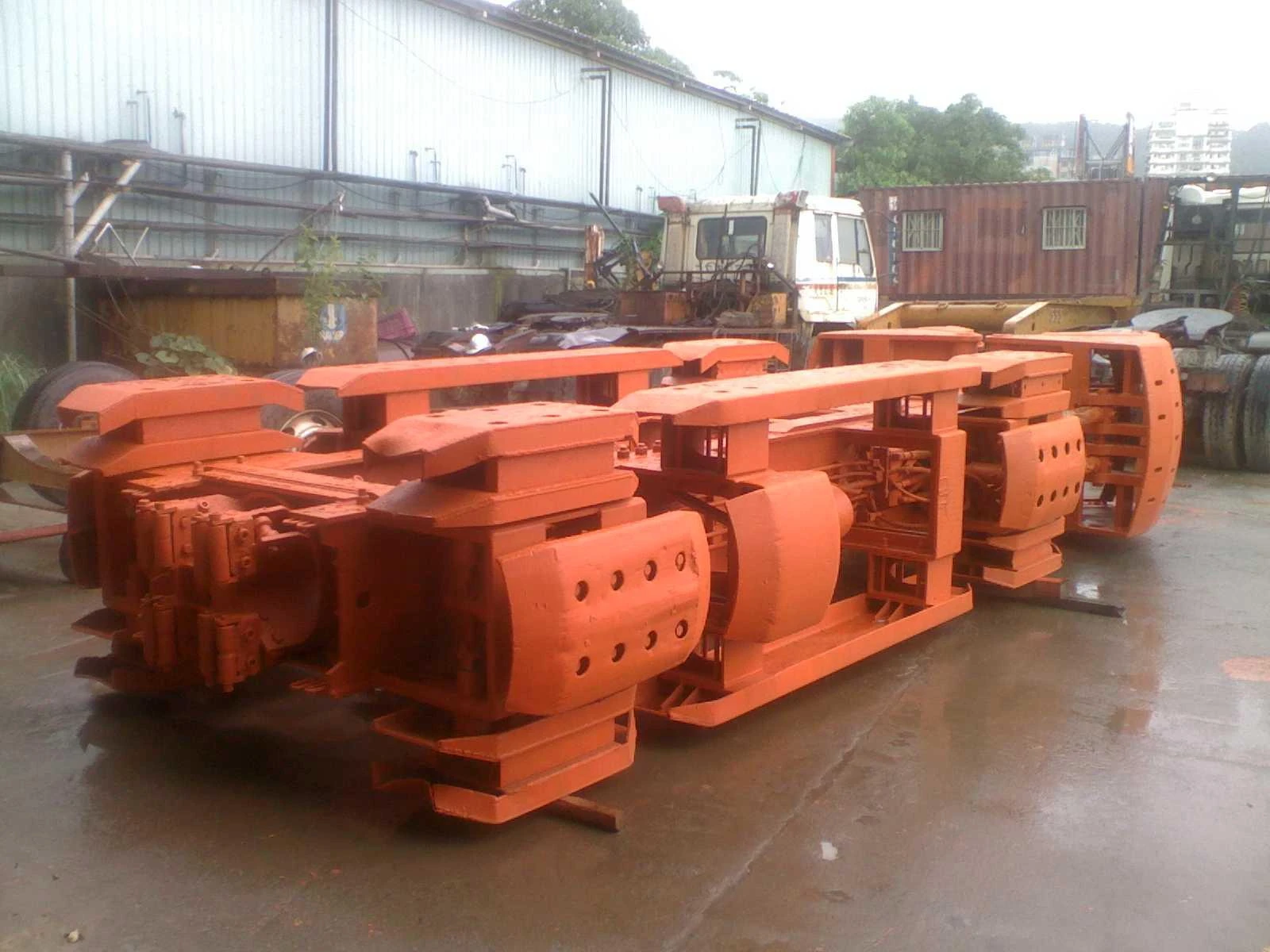

S500 type RCD Drilling Equipment for sale / 台灣黃頁詢價平台
